Quick Details
| Light Source: | LED | Item Type: | High Bay Lights | LED Light Source: | Philips Nichia |
| Warranty(Years): | 5 | Input Voltage(V): | AC90-305V | Lamp Power(W): | 200 |
| Lamp Luminous Flux(lm): | 24000 | Lamp Luminous Efficiency(lm/w): | 120 | CRI (Ra>): | 80 |
| Color Temperature(CCT): | Cool White | Working Temperature(℃): | -44 - 50 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum | IP Rating: | IP54 | Certification: | BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE |
| Place of Origin: | Guangdong China (Mainland) | Brand Name: | LUXINT | Model Number: | LX-GKS200 |
| Item: | LED High Bay Lighting Retrofit | Power factor: | 0.95 | Lamp lens: | 30/60/100 degree |
| Led chip: | Philips/Nichia | Certification: | CE ROHS | Input Voltage: | 90-305V |
| Power: | 200W | Driver: | Meanwell HBG | Beam angle: | 30/60/100° |
| LED High Bay Lighting Retrofit: | LED High Bay Lighting Retrofit |

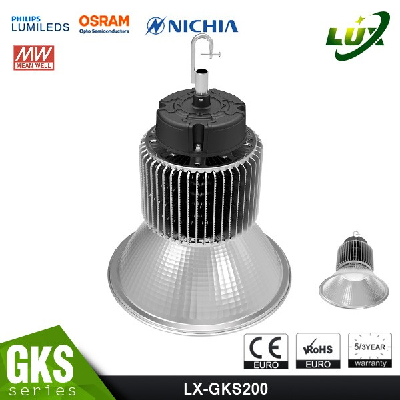

2016 CE Rohs 5 Years Warranty Meanwell Driver Shenzhen Factory Price Promotional Price 200W LED High Bay Lighting Retrofit
Specifications
Product Name : 2016year new design SMD3030 LED High Bay Light
Input Voltage : AC 85-265V, 277V/305V 47-63Hz DC10-28v
Color : CW;PW;WW,R,G,B,Y ,RGB
LED Efficiency : >140 lm/w
Color Rendering Index (CRI) : CW/PW: Ra≥80;WW :Ra≥75
Working Temperature : -40 ºC ~ 50 ºC
Lifespan for LED lighting source : > 50,000 hours
Certification : CE&RoHS&FCC&SGS
Manufacturer : Shenzhen Lux lighting Co.,Ltd.
Shenzhen Lux Lighting Co.,Ltd. ,2016year newest design LED High Bay Light,Philips/Nichia LED High Bay Light Manufacturer
Parameters
Name:LED High Bay Light 200W
MEANWELL Driver: HBG-240-36A;
Maximum System power: 200W
Nominal Voltage(V):AC 100-240V /277V/305V;50/60Hz
Power Factor(PF):>0.95
Power Efficiency:>90%
Total Harmonic Distortion(THD):< 15%
Storage Temperature:-40°C-- 80°C
Working Environment:-35°C-- 70°C ; 10%-95%RH
LED Chip Junction Temperature Tj:80°C±10%
IP Rating:IP54
Lumen output Lumen tolerance /- 5%
Led chip lumens: >140lm/W
Cool white:5500-6500K
Pure white:4000-5000K
Warm white:3000-3500K
CRI: 80Ra
Working Lifetime:>50,000hrs
Heat Radiator:Anodized Aluminum;Lens:PC
Lamp lens:30° /60 °/100 °
Packing Type:1 unit(s)/ctn
Features:
1. Patent design SMD3030 series led high bay light 100w-150W-200w
2. Lumen efficiency of leds can be 140Lm/W.
3. Passed CE, RoHS, FCC, EMC, LVD certifications.
4. We have different design:Philips/Nichia chip for led high bay light
5. 5 years MEANWELL driver.
6. Emitting colors available: warm white, pure white, cool white,etc.
7.Silver color housing to choose
8.IES file could provide
9. 30/60/100 degree lamp lens optional
10.Waterproof IP54
Installation
1. When open the package, please check whether the inside is including product, accessory, label, certificate quality. And please assure that the light is perfect without any damage.
2. The wires of led high bay light is three-core, the standard size of the wire is 3*0.75mm²or3*1mm² and the outer diameter isΦ7~12mm, brown wire is live line, blue wire is null line, yellow& green is ground line.
3. LED high bay light will work when the voltage up to rated voltage, so please be sure the voltage within the requested range, or it will damage the light which can’t be repaired.
4. when the electrical continuity is connected, the lead wire should be in electric insulating

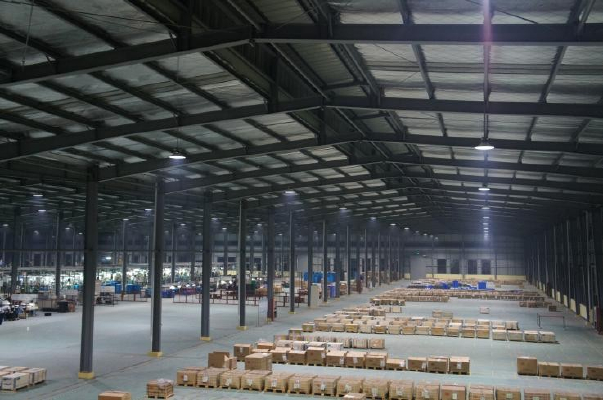

LED high bay light is available for factory,storage room,public places,lobby,highway toll station,exhibition building,domestic block,gymnasium,gas station,show room,shop,super market,cool storage,meeting room and other lighting places
