- Place of Origin: Guangdong, China (Mainland)
- Brand Name: LUXINT
- Model Number: LX-GKS-50W
Quick Details
| Light Source: | LED | Item Type: | High Bay Lights | LED Light Source: | Osram |
| Warranty(Years): | 5 | Input Voltage(V): | 85-305V AC | Lamp Power(W): | 60 |
| Lamp Luminous Flux(lm): | 5500 | Lamp Luminous Efficiency(lm/w): | 110 | CRI (Ra>): | 80 |
| Color Temperature(CCT): | pure white, cool white, warm white | Working Temperature(℃): | -40 - 50 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum | IP Rating: | IP65 | Certification: | BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE |
| Place of Origin: | Guangdong China (Mainland) | Brand Name: | LUX LIGHTING | Model Number: | LX-GKS-50W |
| light source: | philips | driver: | mean well | input: | ac 95-305v |
| ip rate: | IP65 | Housing Material: | die cast, stainless, corrosion resistance | Angle: | wide angle or narrow angle |
| Housing color: | selivery color | color: | warm white, cool white, pure white | eco-friendly: | no mercury, no lead |

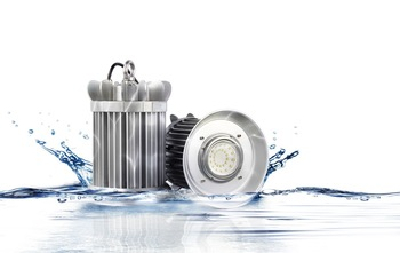

LUXINT brand Crown series 60w led high bay warm white lamp
warm white cool white netural white 60w led high bay
Main Parameters of 150w led high bay
| Model No. | LX-GKS-60W |
| Equivalent | 600W High Pressure Sodium Lamp |
| LED Light Source | 56pcs Osram 3030 or 14pcs Philips 3030 |
| LED Luminous Efficiency | >120 lm/w |
| Lamp Total Power | 60W |
| Power Efficiency | >95% |
| LED Luminous Flux | >7000 lm |
| Lamp Rated Luminous Flux | >6500 lm |
| Lamp Rated Luminous Efficiency | >110 lm/W |
| Color Rendering Index(CRI) | Ra>75 |
| Color Temperature | Cool white: 5700-8000K |
| Pure white: 4500-5500K | |
| Warm white: 2700-3500K | |
| Beam Angle | 30°- 60°- 100° |
| Input Voltage | AC90-305V / MEAN WELL Driver |
| Frequency Range | 47-63Hz |
| Power Factor(PF) | >0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40℃-- 80℃ |
| Working Environment | -40℃-- 50℃ ; 10%-95%RH |
| Junction Temperature(Tj) | 60℃ ± 10%(ta=25℃) |
| Light Body and Lampshade Material | Aluminum Alloy |
| Working Lifetime | > 50,000hrs |
| IP Rating | IP65 |
Main features of 60w led high bay
1. 50-200w are availabe;
2. High grade components, such as Philips, Osram, Nicha original(imported) SMD LED inside
3. LED Chip: High brightness Philips, Osram
4. LED Driver: External Meanwell driver
5. Warm and cold color temperature are available
6. Quick and easy installation to minimize retrofit costs.
7. Cost effective,Efficient heat dissipation, High reflective rate;
8. Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc;
9. Beam angle: 30,60,100 degree.
10.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
11. Adopting unique heat dissipation structure design of massive radiation fins, combined with the pressing, gear-shaping and FIN fastening technology, it helps to maximize the cooling area, efficiently reduce the temperature of the LED lighting chips and thus extend the lifespan of the lighting source.
12.Eco-friendly: No lead, mercury, UV interference
13.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
14.Certificate: CE,RoHS,SAA,PSE,IP65
15.Warranty: 5 years
Application of 60w led high bay
Chemical plant, laboratory, steel plant, airport, military base, building, racket court, factory, storage room, public , parking lot ,exhibition building, domestic block, gymnasium, gasstation, garden and other lighting places.
Attention:
1). In order to make sure the 150w led high bay can work safety and stability, the ground line should be connected the earth.
2) When connecting the wires please turn off the power, and check whether the wires are connected correctly. Never connect the wires in opposite way, or the power should not be turned on.
3) Please keeping the trip bolt being fastening and reliable, in case of the light fall down of looseness.
4) When finishing connect the wires, please use the insulation gummed tape to convolve the wires, confirm the insulation and solve the waterproof problem.
Our Service:
LUX is proud of its 150w led high bay series. They are new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination.
Based on the classic modular design-our first generation LED Flood Light,. Although LEDs were deducted, but the light efficiency is much higher and much more effective based on the dual lens design, this kind of design has really achieved a high luminous efficiency, low power consumption and excellent heat dissipation characteristics.
Full waterproof design (IP65) - white tempered glass, light transmission rate can be more than 93%- the power can contact cooling body directly – light in weight, which make a breakthrough in the aspects of heavy in weight. What’s more, the production is easy to assemble and produce. The shape and structure of the production gain the protection of patents.
